# RGB to HSV, HSV to RGB Conversion Calculator

The HSV color model describes colors according to their **H**ue, **S**aturation, and **V**alue. In some computer graphics programs, it is used as an alternative to the RGB system to quantify colors.

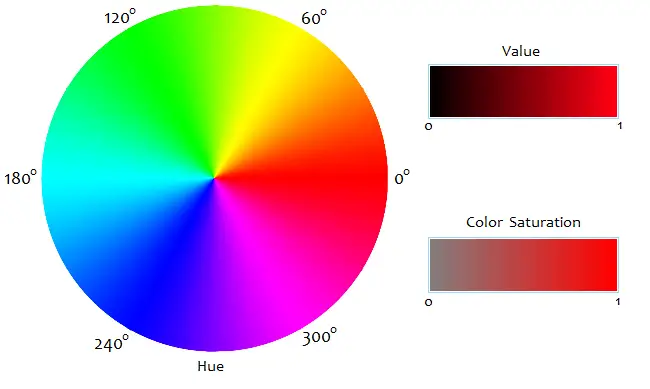

In HSV, hue is a number in the interval [0, 360). A color's hue is its general position on a color wheel, where red is at 0°, green is at 120°, and blue is at 240°. For example the RGB code of a yellow/orange color has high red and green components and a low blue component, with the red level slightly higher than the green. On the color wheel, the angle of this hue is a little less than 60°. The hue of any neutral color--white, gray, or black--is set at 0°.

Value, in HSV, is the highest value among the three R, G, and B numbers. This number is divided by 255 to scale it between 0 and 1. In terms of perception, HSV Value represents how light, bright, or intense a color is. Value does not distinguish white and pure colors, all of which have V = 1.

HSV Saturation measures how close a color is to the grayscale. S ranges from 0 to 1. White, gray, and black all have a saturation level of 0. Brighter, purer colors have a saturation near 1. In other color models that include a saturation component, the precise mathematical definition of S may vary. See HSI and HSL.

### Converting RGB to HSV

Given three numbers R, G, and B (each between 0 and 255), you can first define m and M with the relationsM = max{R, G, B}

m = min{R, G, B}.

And then V and S are defined by the equations

V = M/255

S = 1 - m/M if M > 0

S = 0 if M = 0.

As in the HSI and HSL color schemes, the hue H is defined by the equations

H = cos

^{-1}[ (R - ½G - ½B)/√R² + G² + B² - RG - RB - GB ] if G ≥ B, or

H = 360 - cos

^{-1}[ (R - ½G - ½B)/√R² + G² + B² - RG - RB - GB ] if B > G.

Inverse cosine is calculated in degrees.

### Converting HSV to RGB

Given the values of H, S, and V, you can first compute m and M with the equationsM = 255V

m = M(1-S).

Now compute another number, z, defined by the equation

z = (M-m)[1 - |(H/60)mod_2 - 1|],

where mod_2 means division modulo 2. For example, if H = 135, then (H/60)mod_2 = (2.25)mod_2 = 0.25. In modulo 2 division, the output is the remainder of the quantity when you divide it by 2.

Now you can compute R, G, and B according to the angle measure of H. There are six cases. When 0 ≤ H < 60,

R = M

G = z + m

B = m.

If 60 ≤ H < 120,

R = z + m

G = M

B = m.

If 120 ≤ H < 180,

R = m

G = M

B = z + m.

When 180 ≤ H < 240,

R = m

G = z + m

B = M.

When 240 ≤ H < 300,

R = z + m

G = m

B = M.

And if 300 ≤ H < 360,

R = M

G = m

B = z + m.
